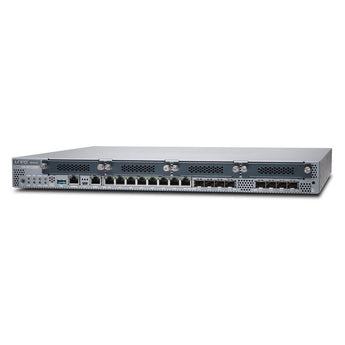

SRX345-SYS-JB-2AC - Juniper SRX Series Service Gateways

Name: SRX345-SYS-JB-2AC - Juniper SRX Series Service Gateways
Brand: Juniper
SKU: SRX345-SYS-JB-2AC
Price: 1625.00 USD
Availability: OutOfStock

$1,625.00 Price on Request

SRX345-SYS-JB-2AC

Product variants

Brand New & Original Guarantee
Hong Kong Shipped – No Heavy Tariffs
14 Days 100% Moneyback
Bulk Order Discount

The SRX345 supports up to 5 Gbps firewall and 800 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.

SRX345-SYS-JB-2AC Specification

General
Device Type	Security appliance
Height (Rack Units)	1U
Width	17.4 in
Depth	14.6 in
Height	1.7 in
Processor / Memory / Storage
RAM	4 GB
Flash Memory	8 GB
Hard Drive	SSD
Networking
Form Factor	Rack-mountable
Airflow Direction	Front to back airflow
Ports Qty	16
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
Network / Transport Protocol	RSVP, IPSec, PPPoE, DHCP, DNS, DDNS
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS
Remote Management Protocol	SNMP, Telnet, HTTP, SSH, CLI
Performance	Firewall throughput (64-byte packet size): 700 Kpps \| Firewall throughput (IMIX): 2 Gbps \| Firewall throughput (1518-byte packet size): 5 Gbps \| VPN throughput (IPSec): 300 Mbps \| VPN throughput (1400-byte packet size): 800 Mbps \| IPS throughput: 500 Mbps \| Connection rate: 20000 connections per second
Capacity	IPv4 routing table entries: 2000000 \| IPv6 routing table entries: 1000000 \| Concurrent sessions: 512000 \| Security policies: 4000 \| Maximum number of NAT rules: 2000 \| MAC addresses: 15000 \| IPSec VPN tunnels: 2048 \| GRE tunnels: 1024 \| Security zones: 64 \| Virtual routers: 128 \| Virtual interfaces (VLANs): 3000 \| Maximum number of users: 200
Features	Firewall protection, NAT support, VPN support, PAT support, IPv6 support, Intrusion Prevention System (IPS), URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, IPv4 support, LLDP support, DHCP relay, DHCP client, J-Flow, Inspect SSL Encrypted Traffic, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, MACsec support, anti-virus protection, Virtual Private LAN Service (VPLS), Label Distribution Protocol (LDP)
Encryption Algorithm	DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA
Authentication Method	Secure Shell (SSH), X.509 certificates
Compliant Standards	IEEE 802.1p, IEEE 802.1x
IP Telephony
VoIP Protocols	SDP
Expansion / Connectivity
Expansion Slots	4 (total) / 4 (free) x expansion slot
Interfaces	8 x 1000Base-T - RJ-45 \| 8 x 1000Base-X - SFP (mini-GBIC) \| 1 x console - RJ-45 \| 1 x mini-USB \| 1 x USB 2.0 - Type A \| 1 x management - RJ-45
Miscellaneous
Included Accessories	Rack mount kit
MTBF	240,000 hours
Compliant Standards	FCC Class A certified, RoHS2
Power
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Power Consumption Operational	122 Watt
Software / System Requirements
OS Provided	JUNOS
Software Included	Junos Software Base
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90% (non-condensing)
