Juniper

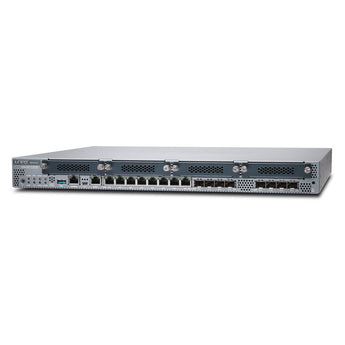

SRX345-SYS-JB - Juniper SRX Series Service Gateways
The SRX345-SYS-JB is a Juniper SRX345 Services Gateway, featuring 16GE ports, 4x MPIM slots, 4GB RAM, 8GB Flash, and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS, Switching). Designed for midsize enterprises, it consolidates security, routing, and switching, offering secure, cost-effective connectivity and advanced threat mitigation.
SRX345-SYS-JB Specification
|
Description |
SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). |
|
Junos OS software version tested |
Junos OS 15.1X49 |
|
Firewall performance (max) |
5 Gbps |
|
IPS performance |
500 Mbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
800 Mbps |
|
Maximum concurrent sessions |
375,000 |
|
New sessions/second (sustained, TCP, 3-way) |
20,000 |
|
Maximum security policies |
4000 |
|
Maximum security intelligence data feed entries in firewall rules database |
N/A |
|
Total onboard ports |
16x1GbE |
|
Onboard RJ-45 ports |
8x1GbE |
|
Onboard small form-factor pluggable (SFP) transceiver ports |
8x1GbE |
|
MACsec-capable ports |
16x1GbE |
|
Out-of-band (OOB) management ports |
1x1GbE |
|
Mini PIM (WAN) slots |
4 |
|
Console (RJ-45 + miniUSB) |
1 |
|
USB 3.0 ports (type A) |
1 |
|
Optional PoE+ ports |
0 |
|
System memory (RAM) |
4 GB |
|
Storage (flash) |
8 GB |
|
SSD slots |
1 |
|
Form factor |
1U |
|
Size (WxHxD) |
17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm) |
|
Redundant PSU |
Yes |
|
Power supply |
AC (internal) / DC (internal) |
|
Maximum PoE power |
N/A |
|
Average power consumption |
122 W |
|
Average heat dissipation |
420 BTU/h |
|
Maximum current consumption |
1.496 A / 6A @ -48 VDC12 |
|
Acoustic noise level |
45.5 dBA |
|
Airflow/cooling |
Front to back |
|
Operational temperature |
-22° to 131° F (-30° to 55° C) |
|
Nonoperational temperature |
4° to 158° F (-20° to 70° C) |
|
Operating humidity |
10% to 90% noncondensing |
|
Nonoperating humidity |
5% to 95% noncondensing |
