Cisco

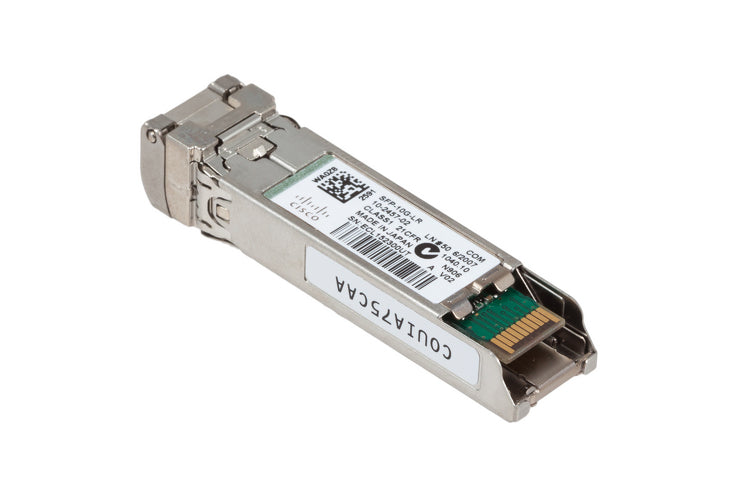

SFP-10G-LR Cisco Original 10GBASE-LR SFP Transceiver Module.
Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
SFP-10G-LR Features：
- Industry’s smallest 10G form factor for greatest density per chassis
- Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
- Supports “pay-as-you-populate” model for investment protection and ease of technology migration
- Digital optical monitoring capability for strong diagnostic capabilities
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
- Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
SFP-10G-LR Specification
|
Wavelength (nm) |
1310 |
|
Cable Type |
SMF |
|
Core Size (Microns) |
G.652 |
|
Modal Bandwidth (MHz*km) |
- |
|
Cable Distance |
10KM |
|
Transmit and Receive Wavelength (nm) |
1260 to 1355 |
|
Bail Latch Color |
Blue |
|
Power Consumption (W)/td> |
1 |
|
Operating Temperature Range |
- |
|
Transmit Power (dBm) |
Maximum: 0.5 Minimum: -8.2 |
|
Receive Power (dBm) |
Maximum: -0.5 Minimum: -14.4 |
