HUAWEI

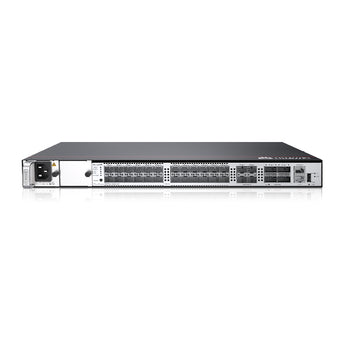

S6730-H48X6C-V2 - Huawei S6700 Series 48-Ports Switch

$2,920.00
S6730-H48X6C-V2
20 in stock, ready to ship
Get Quotes | Help

  • Brand New & Original Guarantee
  • Ships Worldwide in 7 Days
  • Bulk Order Discount
  • 100% Moneyback

Huawei CloudEngine S6730-H series full-featured 10 GE switches are Huawei's new-generation fixed switches ,to provide 10 GE downlink ports as well as 100 GE uplink ports.

S6730-H48X6C Specification

Fixed ports

48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Chassis height(U)

1U

Input voltage

l

• AC Power

- Rated AC voltage: 100V to 240V AC; 50/60 Hz

- Max. AC voltage: 90V to 290V AC; 4565 Hz

• DC Power

- Rated DC voltage: 48V~–60V

- Max. DC voltage-38.4V DC-72V DC

Input current

AC 600WMax 8A

DC 1000WMax 30A

Maximum power consumption

274W

Minimum power consumption

97W

Operating temperature

• 01800 m altitude: -5°C to 45°C

• 18005000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.

Storage temperature

-40-70

Operating altitude

5000 m

Noise (sound pressure at normal temperature)

65dB(A)

Surge protection specification



AC power interface: differential mode: ±6kV: common mode: ±6kV

DC power interface: differential mode: ±2kV: common mode: ±4kV

Power supply type

600W AC Power

1000W DC Power

Relative humidity

5% to 95% (non-condensing)

Fans

4, Fan modules are pluggable

Heat dissipation

Heat dissipation with fan, intelligent fan speed adjustment

MAC

Up to 384K MAC address entries

IEEE 802.1d standards compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN

4K VLANs

Guest VLANs and voice VLANs

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

VLAN mapping

ARP

Static ARP

Dynamic ARP

IP routing

Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy

Up to 256K FIBv4 entries

Up to 80K FIBv6 entries

Interoperability

VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST

Link-type Negotiation Protocol (LNP), similar to DTP

VLAN Central Management Protocol (VCMP), similar to VTP

Wireless service

AP access control, AP domain management, and AP configuration template management

Radio management, unified static configuration, and dynamic centralized management

WLAN basic services, QoS, security, and user management

CAPWAP, tag/terminal location, and spectrum analysis

Ethernet loop protection



RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection

switchover

SEP

ERPS (G.8032)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

MPLS

MPLS L3VPN

MPLS L2VPN (VPWS/VPLS)

MPLS-TE

MPLS QoS

IPv6 features

Neighbor Discover (ND)

PMTU

IPv6 Ping, IPv6 Tracert, IPv6 Telnet

ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types

Multicast Listener Discovery snooping (MLDv1/v2)

IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM

MSDP

Multicast VPN

QoS/ACL

Rate limiting in the inbound and outbound directions of a port

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

DRR, SP, and DRR+SP queue scheduling algorithms

WRED

Re-marking of the 802.1p and DSCP fields of packets

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address,

destination MAC address, source IP address, destination IP address, TCP/UDP source/destination

port number, protocol type, and VLAN ID

Queue-based rate limiting and shaping on ports

Security

Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, port number, and VLAN ID

Port isolation, port security, and sticky MAC

MAC Forced Forwarding (MFF)

Blackhole MAC address entries

Limit on the number of learned MAC addresses

IEEE 802.1X authentication and limit on the number of users on a port

AAA authentication, RADIUS authentication, and HWTACACS authentication

NAC

SSH V2.0

HTTPS

CPU protection

Blacklist and whitelist

Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets

IPSec for management packet encryption

ECA

Deception

Reliability

LACP

E-Trunk

Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)

ITU-Y.1731

DLDP

LLDP

BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes

VXLAN

VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN

VXLAN configuration using NETCONF/YANG

SVF

Acting as the parent node to vertically virtualize downlink switches and APs as one device for

management

Two-layer client architecture

ASs can be independently configured. Services not supported by templates can be configured on

the parent node.

Third-party devices allowed between SVF parent and clients

iPCA

Marking service packets to obtain the packet loss ratio and number of lost packets in real time

Measurement of the number of lost packets and packet loss ratio on networks and devices

Management and maintenance



Cloud-based management

Virtual cable test

SNMP v1/v2c/v3

RMON

Web-based NMS

System logs and alarms of different severities

GVRP

MUX VLAN

NetStream

Telemetry
