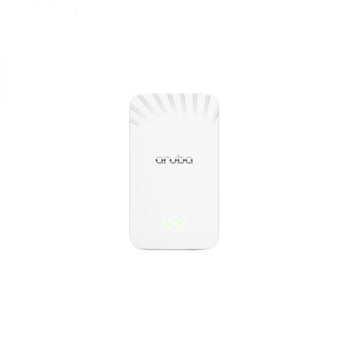

The aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements.
R3V46A Quick Specs
|
Product Code
|
R3V46A
|
|
Ports
|
(1) HPE SmartRate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX
|
|
Input voltage
|
IEEE 802.3at Class 4 PoE, IEEE 802.3bt Class 6 PoE, or direct DC power (via optional power supply)
|
|
Power Consumption
|
50W max
|
|
Radio coverage
|
5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)
|
|
Product Dimensions (metric)
|
150 x 86 x 47 mm
|
R3V46A Features:
Incredible Efficiency with Wi-Fi 6
- The aruba 500H Series Hospitality Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
Infrastructure Designed with Flexibility in Mind
- The aruba 500H Series Hospitality Access Points are purpose-built to deliver unified wired and wireless connectivity for the aruba Edge Services Platform (aruba ESP) and support flexible deployment options.
IoT Platform Capabilities
- The aruba 500H Series Hospitality Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.
