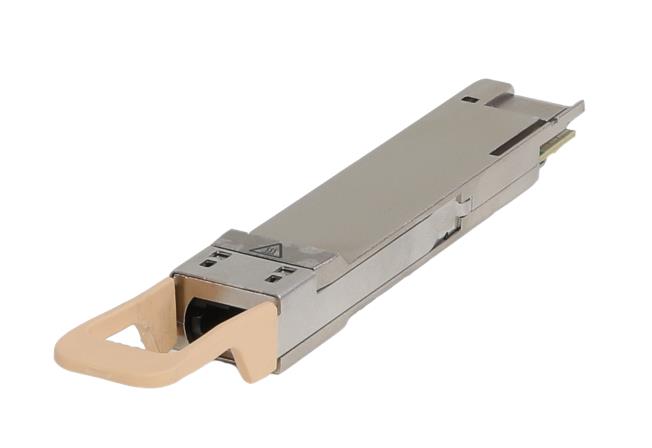

H3C QSFP56-200G-SR4-MM850 is a high-performance 200G optical transceiver designed for short-reach multimode fiber connections, delivering reliable 200GBASE-SR4 connectivity in data center and enterprise networks.
Key Features
200Gbps Data Rate
Delivers 200 Gigabit Ethernet over 8 lanes of 25G PAM4 modulation, meeting the demands of high-bandwidth applications.
Multimode Fiber Support
Optimized for OM3/OM4 multimode fiber, supporting distances up to 70m on OM3 and 100m on OM4.
MPO-12 Connector
Equipped with a standard MPO-12 UPC connector for easy integration into existing parallel fiber infrastructure.
Low Power Consumption
Typical power dissipation of 4.5W, ensuring energy efficiency in high-density deployments.
Specifications
| Model | QSFP56-200G-SR4-MM850 |
| Brand | H3C |
| Form Factor | QSFP56 |
| Data Rate | 200 Gbps (8x 25G PAM4) |
| Wavelength | 850 nm |
| Connector | MPO-12 (UPC polished) |
| Fiber Type | Multimode (50/125 µm) |
| Max Distance (OM3) | 70 m |
| Max Distance (OM4) | 100 m |
| Transmit Power | -6.5 to +4 dBm |
| Receive Sensitivity | -8.4 dBm |
| Power Consumption | 4.5 W (typical) |
| Operating Temperature | 0 to 70 °C |
| DDM Support | Yes |
Key Benefits
- High Bandwidth – 200G per port enables cost-effective scaling of network capacity for data center and enterprise core/aggregation layers.
- Interoperability – Fully compatible with H3C switches and routers supporting QSFP56 ports, ensuring seamless integration.
- Reliability – Built to industry standards with rigorous testing, providing stable performance in demanding environments.
