The aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments.
With a cloud-centric design that combines a fully programmable OS with the aruba Network Analytics Engine, the aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer.
Product Details :
| Differentiator |

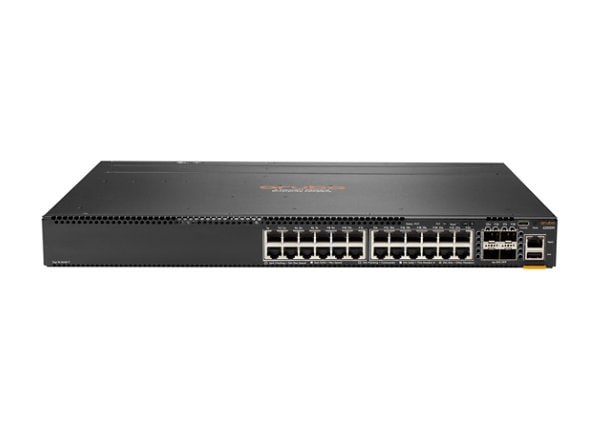

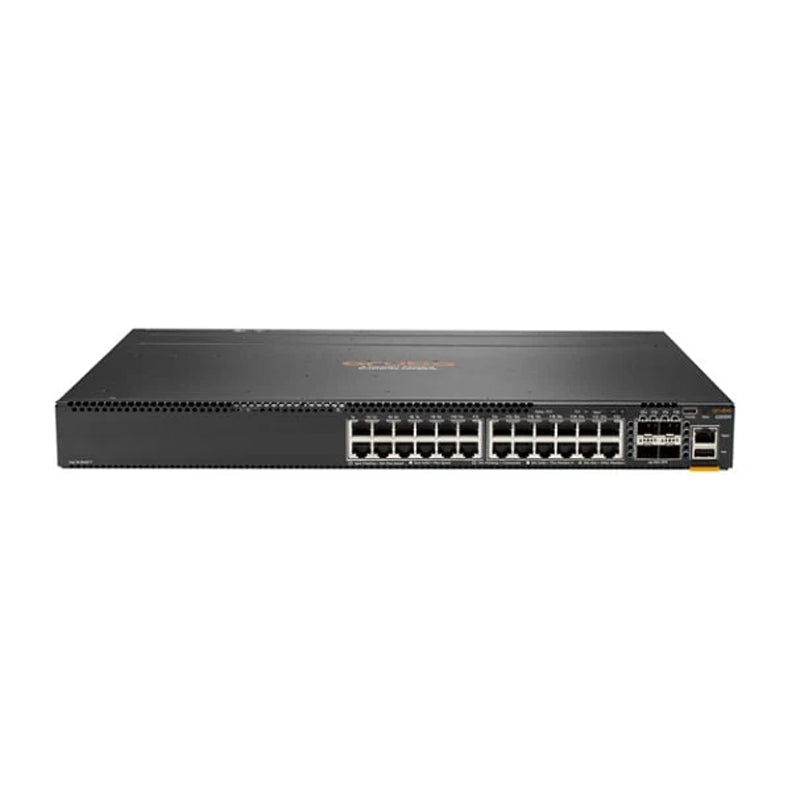

aruba 6300F 24-port 1GbE and 4-port SFP56 Switch
Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame, Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame, Min0 \ Max 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver
|
| Power consumption |
63 W (maximum) |
| Input voltage |
100-120/200-240 VAC |
| Ports |
(24) 10/100/1000 BASE-T ports, (4) 1/10/25/50G SFP ports |
| Latency |
1Gbps: 2.28?Sec,
10Gbps: 1.46?Sec,
25Gbps: 1.90?Sec,
50Gbps: 3.49?Sec |
What's New
- Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. Now supporting MACsec 256, PTP, AVB and LRM.
- High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth.
- Series includes full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit and up to 90W PoE, SFP+ model and switch bundle with power-to-port airflow for data center 1GbE ToR and OOBM deployments.
- Built-in high speed 10GbE/25GbE/50GbE uplinks (50GbE for DAC connectivity only) with intelligent monitoring and visibility via aruba Network Analytics Engine.
