This is a Spare only
Must be used with 2 Power Units (JL632A, JL633A, JL861A, JL862A)
Must be used with 6 Fan Tray (JL628A, JL629A)
2 Post Rack Kit included, must use 4 Post Rack Mount Kit (J9583B) with HPE Racks
1U - Height

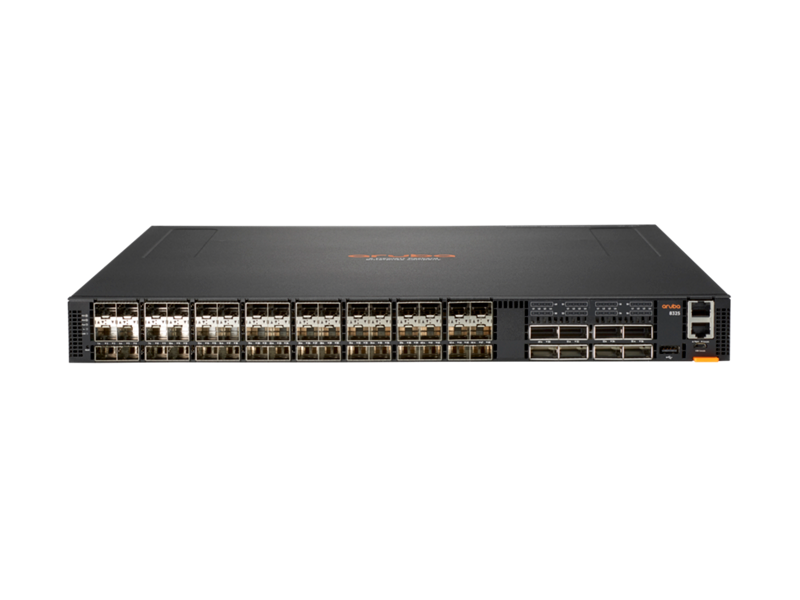

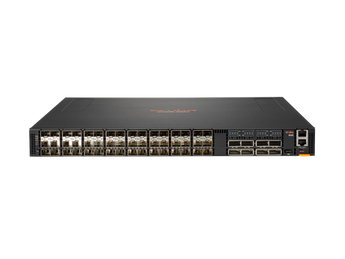

Differentiator48-port SFP28 (1/10/25 GbE) and 8-port QSFP28 (40/100 GbE) switch
Power consumptionMax: 550W
Ports(48) 25G SFP28 ports and (8) 100G QSFP28 ports
Routing/switching capacity6.4 Tbs, maximum
Switch fabric speed6.4 Tbps
Switching capacityHigh-speed fully distributed architecture
Provides 6.4Tbps for switching and 2,000 Mpps for forwarding. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future.
Stacking capabilitiesThese switches serve the needs of the next generation core and aggregation layer, as well as emerging data center
requirements at the Top of Rack (ToR) and End of Row (EoR)
Throughput1,905 Mpps, maximum
Memory and processorCPU 2.2GHz
Memory, Drive and Flash 16GB RAM, 64GB SSD, 8GB Flash
Packet Buffer 32MB
Power supply nameField-replaceable, hot-swappable, and up to 2 power supplies.
Management featuresIndustry-standard CLI with hierarchical structure, SNMP v2c/v3, sFlow (RFC 3176), remote monitoring (RMON)
