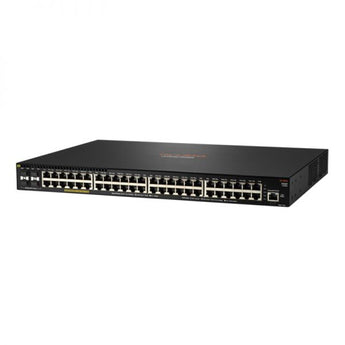

JL558A, Aruba 2930F Switch Series creates digital workplaces for mobile users. These Layer 3 switches are easy to deploy/manage with advanced security/network tools: ClearPass, AirWave, and Aruba Central. VSF offers stacking scale/simplicity for enterprise edge, SMB, and branch offices. 2930F offers performance/value, supporting RIP routing, OSPF, 10GbE uplinks, up to 740W PoE+, QoS, no licensing.
|Differentiator|| Popular Aruba 52-port Gig + 10G access switch with high-power 740 Watts PoE+ power.
This model has 48x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.
|Power consumption||980 W (maximum)|
|Heat dissipation||420.9 BTU/hr (444.1 kJ/hr)|
|Input voltage||100-127 / 200-240 VAC, rated|
|Ports||(48) RJ-45 autosensing 10/100/1000 PoE+ ports
(4) SFP+ 1/10GbE ports
|Latency||1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs
|Switching capacity||176 Gbps|
|Throughput||up to 112 Mpps|
|Memory and processor||Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
|PoE capability||740 W PoE+|
|Management features||Aruba AirWave
Central Network Management
IMC - Intelligent Management Center
Out-of-band management (serial RS-232C or micro USB)
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
