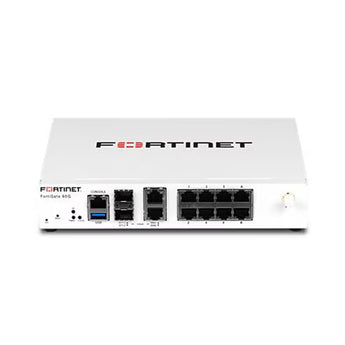

FG-91G Fortinet FortiGate Firewall with 8 X GE RJ45 Ports, 2 X 10GE RJ45/SFP+

• Explore Remote Installation & Support for this device
• Recommended for 201-500 User Network
• Threat Protection Throughput: 2.2 Gbps
• Site-to-Site VPN Tunnels: 2500
• Concurrent Sessions: 1,500,000
• Manufacturer Part #: FG-91G

System Performance And Capacity:

• The Firewall throughput measures 28 Gbps for 1518 byte UDP packets, 28 Gbps for 512 byte UDP packets, and 27.9 Gbps for 64 byte UDP packets.
• The Firewall latency is a speedy 3.23 μs for 64 byte UDP packets.
• It can handle a massive 41.85 million packets per second.
• The capacity for concurrent TCP sessions is 1.5 million, and it can establish up to 124,000 new TCP sessions per second.
• It supports up to 5000 firewall policies.

VPN Capabilities:

• The IPsec VPN throughput is 25 Gbps for 512 byte packets.
• It can handle 200 Gateway-to-Gateway IPsec VPN tunnels and up to 2500 Client-to-Gateway IPsec VPN tunnels.
• The SSL-VPN throughput is impressive at 1.4 Gbps.
• It can support up to 200 concurrent SSL-VPN users in tunnel mode.

SSL Inspection And Application Control:

• The SSL Inspection throughput averages 2.6 Gbps for HTTPS when IPS is enabled.
• It can handle 1400 SSL Inspection CPS (Connections Per Second) with IPS for average HTTPS.
• It can manage 300,000 concurrent SSL Inspection sessions with IPS for average HTTPS.
• The Application Control throughput for HTTP 64K is 6.7 Gbps.

Additional Capabilities:

• The CAPWAP throughput for HTTP 64K is a whopping 23.6 Gbps.
• It supports 10 virtual domains by default, with a maximum of 10.
