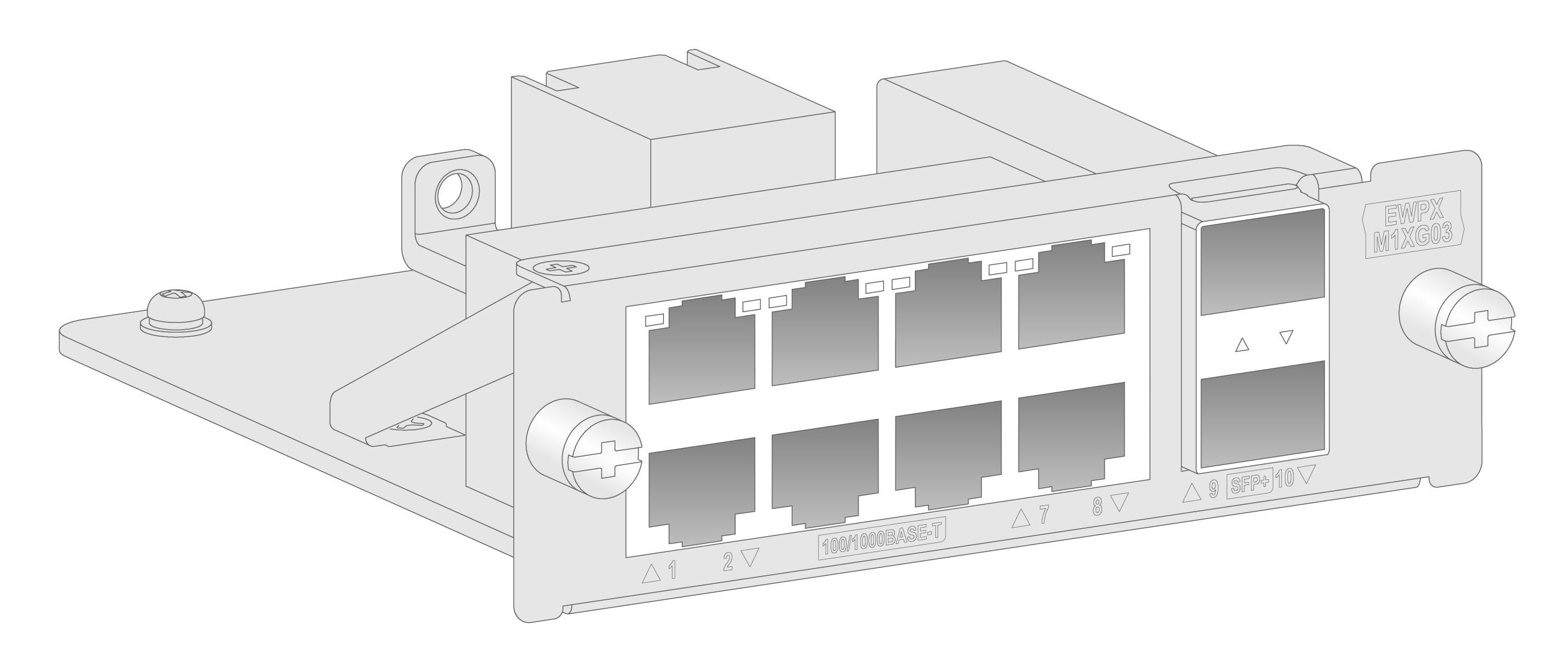

EWPXM1XG03 - H3C 8GE+2SFP+ Interface Expansion Module
Submit your BOM or project details
Get better discount from H3C tailored to your needs.
Couldn't load pickup availability
-
Brand New & Original Guarantee
-
Global Delivery & Local Support
-
Project Pricing Available
-
30-Days Return and Exchange Guarantee
Expand your H3C WX3500X series access controller with 8 Gigabit Ethernet copper ports and 2 SFP+ fiber uplinks for high-speed connectivity and network flexibility.
Key Features
8 GE Copper Ports
Eight 100/1000BASE-T autosensing RJ-45 ports for reliable wired connections.
2 SFP+ Uplinks
Dual 1/10 Gbps SFP+ fiber ports for high-speed backbone or aggregation links.
Hot-Swappable Design
Install or replace without powering down the chassis, minimizing network downtime.
Wide Compatibility
Compatible with H3C WX3820X, WX3840X, and WX3500X series access controllers.
Specifications
| Model | EWPXM1XG03 |
| Brand | H3C |
| Product Type | Interface Expansion Module |
| Ports | 8 x 100/1000BASE-T RJ-45, 2 x SFP+ (1/10 Gbps) |
| Connector Type | RJ-45 (copper), LC (fiber) |
| Standards | IEEE 802.3i, 802.3u, 802.3ab |
| Max Distance (Copper) | 100 m (328 ft) |
| Cable (Copper) | Category 5 or above twisted pair |
| Dimensions (H x W x D) | 40.9 x 150 x 242.8 mm (1.61 x 5.91 x 9.56 in) |
| Power Consumption | 32.3 W – 46.2 W |
| Compatible Models | WX3820X, WX3840X, EWPM1WBCE0ENT, EWPM1WBCE0ENT-ULTRA |
Key Benefits
- Enhanced Connectivity – Add 8 GE and 2 SFP+ ports to your access controller for increased device density and uplink capacity.
- Flexible Deployment – Hot-swappable module allows for easy expansion without service interruption.
- Future-Proof – SFP+ ports support both 1G and 10G optics, adapting to evolving network speed requirements.
