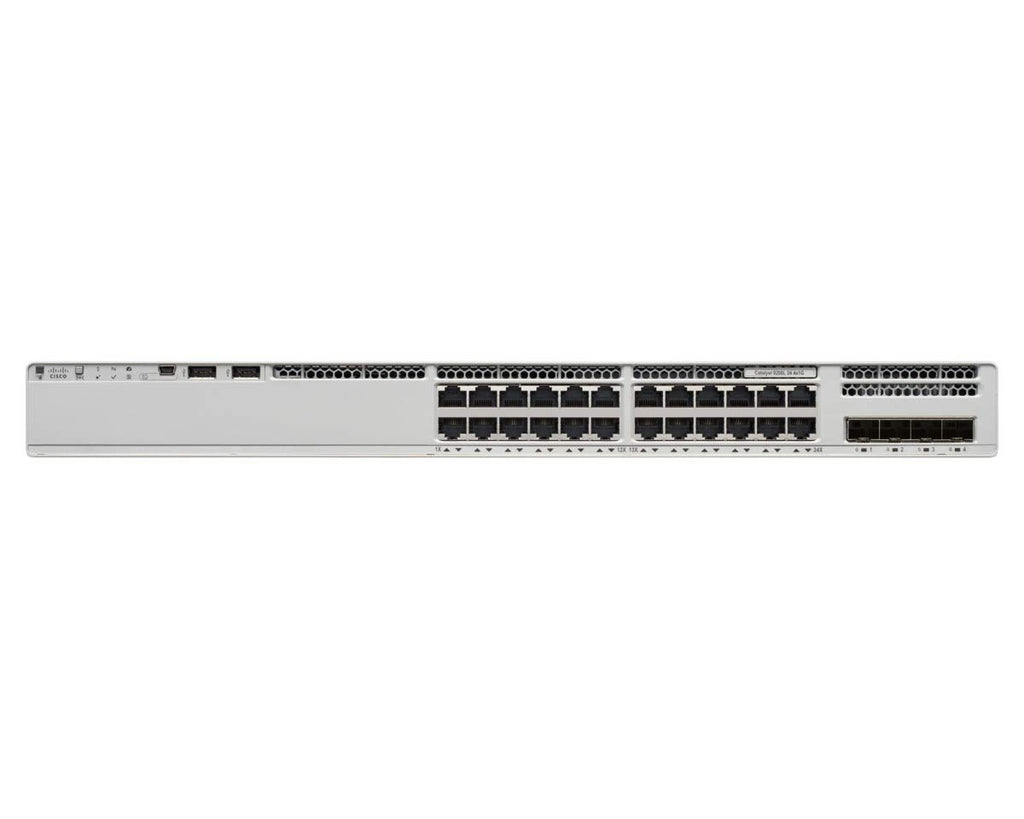

C9200L-24T-4G-E is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Essentials software. Cisco 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments.
Pruduct Details:
Model
|
C9200L-24T-4G-E
|
Downlinks total 10/100/1000
or PoE+ copper ports
|
24 ports data
|
Uplink configuration
|
4x 1G fixed uplinks
|
Default primary AC power supply
|
PWR-C5-125WAC
|
Fans
|
Fixed redundant
|
Software
|
Network Essentials
|
Stacking bandwidth
|
80 Gbps
|
DRAM
|
2 GB
|
Flash
|
4 GB
|
Switching capacity
|
56 Gbps
|
Forwarding rate
|
83.33 Mpps
|
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
