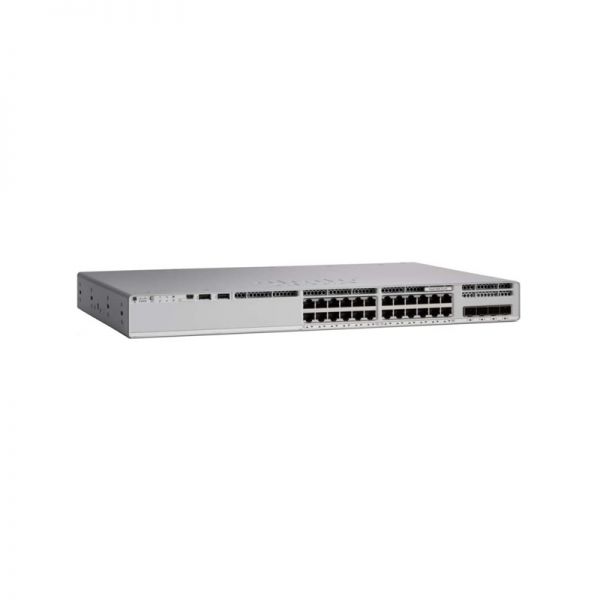

C9200-24P-E is the Catalyst 9200 24-port PoE+ Switch, with Network Essentials software.
With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
C9200-24P-E quick spec.
Model
|
C9200-24P-E
|
Downlinks total 10/100/1000 or
PoE+ copper ports
|
24-port PoE+
|
Uplink configuration
|
Modular uplink options
|
Default primary AC power supply
|
PWR-C6-600WAC
|
Fans
|
FRU redundant
|
Software
|
Network Essentials
|
Stacking bandwidth
|
160 Gbps
|
DRAM
|
4 GB
|
Flash
|
4 GB
|
Switching capacity
|
128 Gbps
|
Forwarding rate
|
190.4 Mpps
|
Chassis Dimensions |
1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm
|
C9200-24P-E provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
