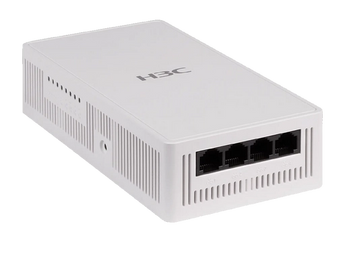

EWP-WA6520H-FIT - H3C Wi-Fi 6 Walljack AP
Submit your BOM or project details
Get better discount from H3C tailored to your needs.
Couldn't load pickup availability
-
Brand New & Original Guarantee
-
Global Delivery & Local Support
-
Project Pricing Available
-
30-Days Return and Exchange Guarantee
The H3C EWP-WA6520H-FIT is a high-performance Wi-Fi 6 walljack access point, delivering dual-band 4-stream connectivity with speeds up to 2.975 Gbps for enterprise-grade wireless networks.
Key Features
Wi-Fi 6 Technology
Supports 802.11ax with 2x2 MIMO on both 2.4GHz and 5GHz, providing higher capacity and efficiency.
Walljack Design
Compact form factor with built-in antennas, ideal for in-room deployments in hotels, dorms, and offices.
Flexible Management
Operates in Fit or Cloud mode, managed by H3C WLAN controllers or intelligent O&M platform.
Advanced Security
Supports WPA3, 802.1X, and multiple SSIDs with VLAN mapping for secure access.
Specifications
| Model | EWP-WA6520H-FIT |
| Brand | H3C |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible a/b/g/n/ac |
| Frequency Bands | Dual-band: 2.4 GHz + 5 GHz |
| Max Throughput | 2.975 Gbps (combined) |
| MIMO | 2x2:2 on both bands |
| Antenna | Built-in omni-directional (2.4GHz: 3dBi, 5GHz: 4dBi) |
| Ethernet Ports | 1x 100/1000M RJ45, 1x 10/100/1000M/2.5G SFP |
| PoE | 802.3af (GE1), photoelectric composite (SFP) |
| Local Power | 54V DC |
| Dimensions | 180mm x 180mm x 32mm |
| Operating Temperature | 0°C to +45°C |
| Management | Fit/Cloud mode, CLI, Web GUI, SNMP |
| Security | WPA3, 802.1X, MAC filtering, VLAN per SSID |
| Mounting | Wall/ceiling, pre-installed bracket |
Key Benefits
- High Performance – Dual-band 4-stream Wi-Fi 6 delivers up to 2.975 Gbps for demanding applications.
- Space-Saving Design – Walljack form factor with built-in antennas eliminates clutter and simplifies installation.
- Flexible Deployment – Supports Fit and Cloud modes for centralized or local management.
- Enhanced Security – WPA3 and enterprise-grade authentication protect your network.
