EWP-WA6520-SI-FIT - H3C Wi-Fi 6 Dual-Radio Indoor AP
Submit your BOM or project details
Get better discount from H3C tailored to your needs.
Couldn't load pickup availability
-
Brand New & Original Guarantee
-
Global Delivery & Local Support
-
Project Pricing Available
-
30-Days Return and Exchange Guarantee

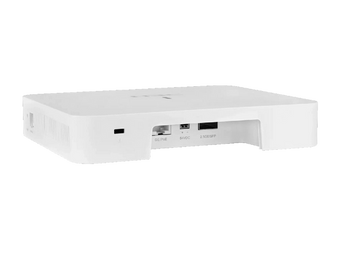

The H3C EWP-WA6520-SI-FIT is a high-performance indoor Wi-Fi 6 access point delivering dual-band 2x2 MIMO with speeds up to 2.975 Gbps, ideal for enterprise deployments.
Key Features
Wi-Fi 6 Technology
Supports 802.11ax for higher capacity, efficiency, and improved performance in dense environments.
Dual-Radio Design
Simultaneous 2.4GHz and 5GHz operation with 2x2 MIMO for combined throughput up to 2.975 Gbps.
Built-in Antennas
Integrated omni-directional antennas with 4dBi gain at 5GHz and 3dBi at 2.4GHz for optimal coverage.
Flexible Deployment
Supports Fit and Cloud AP modes, PoE input, and wall/ceiling mounting for easy installation.
Specifications
| Model | EWP-WA6520-SI-FIT |
| Brand | H3C |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), backward compatible a/b/g/n/ac |
| Frequency Bands | Dual-band: 2.4 GHz & 5 GHz |
| MIMO Configuration | 2x2:2 on both bands |
| Max Throughput | 2.975 Gbps (combined) |
| Antenna Type | Built-in omni-directional |
| Antenna Gain | 5GHz: 4dBi, 2.4GHz: 3dBi |
| Ethernet Ports | 1 x 100/1000M RJ-45 (PoE input) |
| Console Port | 1 x RJ-45 management console |
| PoE Input | 802.3af |
| Local Power | 54V DC (Phoenix Connector, adapter sold separately) |
| Dimensions (W x D x H) | 180mm x 180mm x 32mm |
| Operating Mode | Fit AP (managed by WLC) / Cloud AP |
| Security | WPA3, 802.1X, VLAN per SSID, MAC filtering |
| Mounting | Wall or ceiling (bracket included) |
| Temperature Range | 0°C to +50°C (operating) |
| MTBF | >864,581 hours |
Key Benefits
- High Performance – Wi-Fi 6 delivers faster speeds and better efficiency for high-density environments.
- Easy Management – Flexible Fit or Cloud AP modes simplify deployment and centralized control.
- Reliable Connectivity – Built-in antennas and PoE support ensure stable, cost-effective installation.
- Future-Proof – Backward compatible with existing Wi-Fi devices while preparing for next-gen networks.
